KIRSCH Laboratory Refrigerator LABEX® 288 PRO-ACTIVE

Product overview
Explosion-proof interior (Zone 2)
Uniform temperature control through efficient convection cooling
Visual and audible alarm in case of power failure
Door opening alarm after 60 seconds
Including three shelves and one drawer

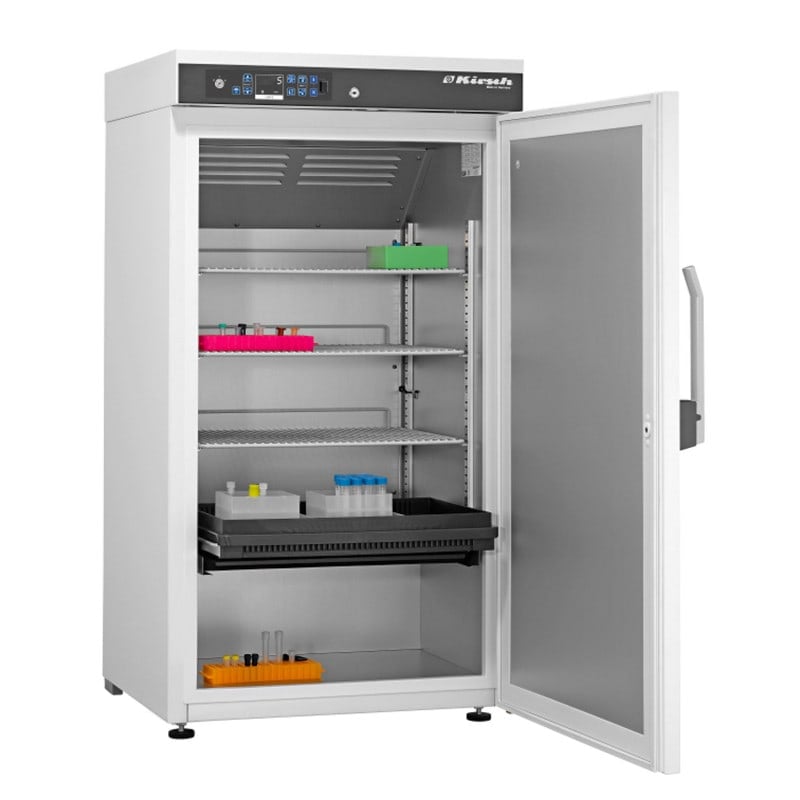

KIRSCH Laboratory Refrigerator LABEX® 288
The energy-saving KIRSCH LABEX® 288 laboratory refrigerator is used for reliable cooling of laboratory samples and complies with DIN 13277. It is equipped as standard with a lockable door with exchangeable door hinge and an efficient convection cooling system with a specially fused fan. Recirculating air cooling ensures even temperature and a low temperature gradient between the different heights of the storage spaces.

As the laboratory refrigerator is equipped with the innovative PRO-ACTIVE control, it enables precise and permanent proactive monitoring of performance data. In the event of deviations due to a power failure or malfunctions, an acoustic and visual alarm signal indicates errors in the cooling system. Data recording is ensured during a power failure by the battery operation of the monitoring unit for approx. 30 hours.

Product Details
KIRSCH Laboratory Refrigerator LABEX® 288
Explosion-proof interior (Zone 2)
Permanent monitoring of the performance data thanks to PRO-ACTIVE control
Precise temperature regulation with 2 PT-100 sensors
Self-closing and lockable door
With replaceable plastic magnetic sealing frame
Uniform temperature control through efficient convection cooling
Switches off automatically when the refrigerator door is opened
Fan specially fused
Low temperature gradient between storage locations
Automatic defrost with melt water container
Visual and audible alarm in case of power failure/malfunction
Data recording ensured by battery operation for 30 h
Door opening alarm after 60 seconds
Freeze protection against minus temperatures
Outer casing made of rust-protected and galvanised sheet steel
White and scratch-resistant powder coating
Interior in smooth aluminium with coating
Adjustable slats (15 mm grid) for variable interior partitioning
Including three shelves and one drawer
Drawer on roller runners with locking device
With 2 adjustable dividers lengthwise and 9 adjustable dividers crosswise
Storage area per drawer: 0.16 m2
Energy-saving insulation (55 mm thick)
Complies with DIN 13277
Length of the plug cable approx. 2.8 m
Adjustable feet in the front area
Easy levelling of uneven floors

Technical Data
Voltage: 220 - 240 V, 50 Hz
Power input: 100 watts
Standard consumption: 0.76 kWh/24 h
Permissible ambient temperature: +10 °C to +38 °C
Heat emission (max.): 173 watts
Outer dimensions (incl. wall clearance & door handle): 67 x 72 x 132 cm (W x D x H)
Inner dimensions: 53 x 50 x 100 cm (W x D x H)*
Outer dimensions with door open at 90°: 67 x 130 cm (W x D)
Grate size: 52.7 x 39 cm (W x D)
Clear drawer dimensions: 50.4 x 32 x 5.6 cm (W x D x H)
Maximum load per drawer/grate: 16 kg/40 kg
Weight: net 75 kg, gross 87 kg
