KIRSCH Laboratory Refrigerator LABO 720 CHROMAT PRO-ACTIVE

Product overview
Permanent monitoring of performance data
Self-closing and lockable glass door
4 castors, LED light strip & 3-way moisture-proof sockets
Uniform temperature control due to convection cooling
Visual & audible alarm in case of power failure

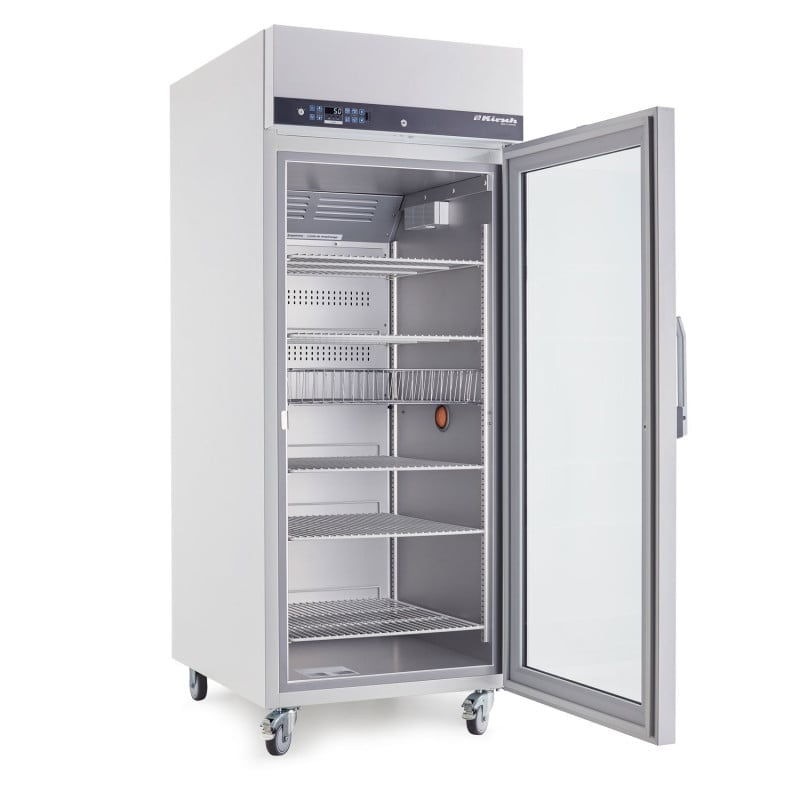

KIRSCH Laboratory Refrigerator LABO 720 CHROMAT
The energy-saving KIRSCH LABO 720 CHROMAT laboratory refrigerator is used for reliable cooling of laboratory samples and complies with DIN 13277. It is equipped as standard with a self-closing and lockable glass door as well as a 3-gang moisture-proof socket. Cables with a diameter of approx. 7 cm can be laid and integrated in the refrigerator with the aid of the cable gland on the right-hand centre of the housing. When the glass door is opened, an LED strip mounted on the side panel ensures optimum visibility. For easy movement, the refrigerator is equipped with four smooth-running castors.

As the laboratory refrigerator is equipped with the innovative PRO-ACTIVE control, it enables reliable and permanent proactive monitoring of all performance data. In the event of deviations due to a power failure or malfunctions, an acoustic and visual alarm signal indicates errors in the cooling system. Data recording is ensured during a power failure by the battery operation of the monitoring unit for approx. 30 hours.

In addition, efficient convection cooling ensures a constant temperature inside the refrigerator. In addition, the refrigerator has a low temperature gradient between different storage spaces. This ensures that samples stored at the highest point are exposed to the same temperature as those placed at the lowest storage location.

Product Details
KIRSCH Laboratory Refrigerator LABO 720 CHROMAT
Permanent monitoring of performance data thanks to PRO-ACTIVE control
Precise temperatureregulation with 2 PT-100 sensors
Self-closing and lockable glass door
Refrigerator contents can be viewed from the outside
With replaceable plastic magnetic sealing frame
Easy to move with four smooth-running castors
Uniform temperature control through efficient convection cooling
Low temperature gradient between storage locations
LED light strip mounted on the inside of the side wall
Automatic lighting when opening the glass door
3-pin moisture-proof sockets installed in the interior
Automatic rapid defrost and defrost water evaporation
Visual and audible alarm in case of power failure/malfunction
Data recording ensured by battery operation for 30 h
Door opening alarm after 60 seconds
Freeze protection against minus temperatures
Outer casing made of rust-protected and galvanised sheet steel
White and scratch-resistant powder coating
Interior in smooth aluminium with coating
Adjustable slats (15 mm grid) for variable interior partitioning
Five coated grates included
Energy-saving insulation (70 mm thick)
Housing feed-through for cables and hoses (Ø 7 cm)
With quiet fan (approx. 40 dB)
Complies with DIN 13277

Technical Data
Capacity: 700 litres
Temperature setting: approx. 0 to +15 °C*
Voltage: 220 - 240 V, 50 Hz
Power input: 250 watts
Standard consumption: 1.63 kWh/24 h
Permissible ambient temperature: +10 °C to +38 °C
Heat emission (max.): 553 watts
Outer dimensions (incl. wall clearance & door handle): 77 x 98 x 196 cm (W x D x H)*
Inner dimensions: 62 x 77 x 140 cm (W x D x H)
Outer dimensions with door open at 90°: 77 x 165 cm (W x D)
Grate size: 59 x 65 cm (W x D)
Maximum load per grate: 40 kg
Weight: net 146 kg, gross 174 kg
